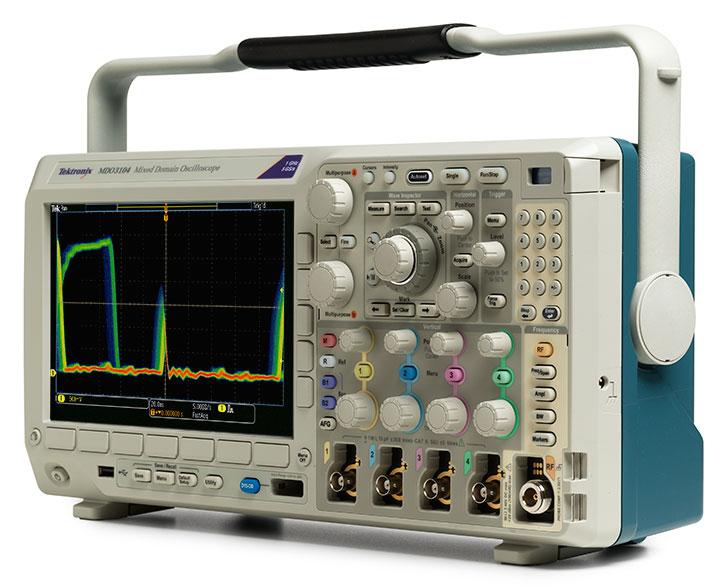

MDO3000 Mixed Domain Oscilloscope

Please note: The supply of the MDO3000 Series oscilloscopes is limited. The 3 Series MDO oscilloscopes are the recommended replacements for the MDO3000 Series. Learn about the 3 Series MDO Oscilloscopes.

The MDO3000 Mixed Domain Oscilloscope features up to six integrated instruments, including options like a spectrum analyzer, function generator and more, giving you the ability to capture analog, digital and RF signals with one scope. You can even add instruments, analysis functions and upgrade bandwidth as your design challenges evolve.
See more oscilloscope models.

Base Price
HKD 68,300 +
Bandwidth

Up to 1 GHz

Record length

10 Mpoints

Analog channels

2 or 4

Sample Rate

Up to 5 GS/s



A powerful scope is only the start.

Today’s engineering world is dominated by multi-core processors, serial buses, and wireless interfaces. At the heart of the MDO3000 is a tried-and-true Tektronix oscilloscope paired with a base spectrum analyzer and digital voltmeter. Then you can customize it to your testing needs. Add 16 logic channels, a 50 MHz arbitrary/function generator, protocol analysis, and an expanded 3 GHz spectrum analyzer to help tackle today’s—and tomorrow’s—complex designs.

Highlights

  • Award winning oscilloscope with 125 trigger combinations
  • 10 Mpoint record length with Wave Inspector® controls
  • Base spectrum analyzer included
  • Add instruments and functionality as your testing needs evolve

Accurate Measurements Matter

Put simply, the MDO3000 Series scope is designed to make the most accurate measurements in the industry. While many other instruments only offer low-resolution display data, the MDO3000 takes measurements on actual acquisition data, providing an unrivaled view into your designs. In fact, we’re so confident in the MDO3000 will give you total confidence in your measurements that we guarantee our specifications. After all, measurement accuracy impacts design integrity. Why settle for anything less than exact?

The best probes at the best price: free.

Probes should not be overlooked as a key element in the measurement signal path. When you buy an MDO3000 you get the industry’s best probes free. Featuring industry-best loading of 3.9 pF and high bandwidth to match your oscilloscope, the TPP-series probes will be your go-to probe for everyday use.

Highlights

  • TPP-series probes included standard, one per analog channel
  • Industry-best capacitive probe loading of 3.9 pF
  • 250 MHz, 500 MHz or 1 GHz probe bandwidth to match the scope’s bandwidth

Make Wireless Measurements like an RF Expert – without having to become one

Are wireless communications and EMI considerations pulling you from your comfort zone? Or are you an RF expert who needs an oscilloscope capable of making time and frequency domain measurements? Either way, the MDO3000 oscilloscope with a built-in spectrum analyzer is up to the task. Unlike other oscilloscopes that offer FFT “spectrum analysis”, only the MDO3000 has a true spectrum analyzer built right in, enabling you to perform RF measurements up to 3 GHz without having to leave the comfort of your scope.

Highlights

  • Base spectrum analyzer, included standard
  • Available 3 GHz spectrum analyzer upgrade
  • Industry’s only true integrated spectrum analyzer hardware

Accidents happen. Make sure you're protected...

We have the only plan in the industry to offer coverage for accidental damage. Yes, this includes screen damage, spills, broken mounts, and electrostatic discharge or electronic overstress events. Reduce unplanned repair or replacement costs with our Total Protection Plan. Watch the video or click below to learn more.

Learn More

Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Spectrum Analyzer Function Generator Output List Price Configure And Quote
MDO3014 100 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 68,300 Configure & Quote
MDO3022 200 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 68,400 Configure & Quote
MDO3024 200 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 76,300 Configure & Quote
MDO3032 350 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 119,000 Configure & Quote
MDO3034 350 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 143,000 Configure & Quote
MDO3052 500 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 150,000 Configure & Quote
MDO3102 1 GHz 5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 177,000 Configure & Quote
MDO3054 500 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 192,000 Configure & Quote
MDO3104 1 GHz 5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 235,000 Configure & Quote
Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Spectrum Analyzer Function Generator Output List Price Configure And Quote
MDO3014 100 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 68,300 Configure & Quote
MDO3022 200 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 68,400 Configure & Quote
MDO3024 200 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 76,300 Configure & Quote
MDO3032 350 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 119,000 Configure & Quote
MDO3034 350 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 143,000 Configure & Quote
MDO3052 500 MHz 2.5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 150,000 Configure & Quote
MDO3102 1 GHz 5 GS/s 10 Mpoints 2 16 (optional) Up to 3 GHz

1 (optional)

HKD 177,000 Configure & Quote
MDO3054 500 MHz 2.5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 192,000 Configure & Quote
MDO3104 1 GHz 5 GS/s 10 Mpoints 4 16 (optional) Up to 3 GHz

1 (optional)

HKD 235,000 Configure & Quote
  Tektronix
MDO3000
Tektronix
3 Series MDO
Keysight
3000T
LeCroy
WaveSurfer 3000
R&S
RTM2000
Bandwidth 100 MHz to 1 GHz 100 MHz to 1 GHz 100 MHz to 1 GHz 200 MHz to 750 MHz 200 MHz to 1 GHz
Upgradeable Bandwidth Yes Yes Yes Yes Yes
Analog Channels 2 or 4 2 or 4 2 or 4 2 or 4 2 or 4
Analog Sample Rate Up to 5 GS/s Up to 5 GS/s Up to 5 GS/s Up to 4 GS/s Up to 5 GS/s
Standard Record Length (All Channels) 10 M 10 M 2 M 10 M 10 M
Integrated Arbitrary/Function Generator 50 MHz (opt) 50 MHz (opt) 20 MHz (opt) 25 MHz (opt) --
Integrated Logic Channels (MSO) 16 (opt) 16 (opt) 16 (opt) 16 (opt) 16 (opt)
Integrated Hardware Spectrum Analyzer Up to 3 GHz (opt) 1 GHz (std)
Up to 3 GHz (opt)
-- -- --
Standard Probes Up to 1 GHz Passive Up to 1 GHz Passive Up to 500 MHz Passive Up to 500 MHz Passive Up to 500 MHz Passive
Standard Warranty 3 years 3 years 3 years 3 years 3 years

Embedded Serial Bus Trigger, Decode and Analysis

A single serial bus signal often includes address, control, data, and clock information; making isolating events of interest difficult. The serial application modules for the MDO3000 series transform the oscilloscope into a robust tool for debugging serial buses with automatic trigger, decode, and search.

Highlights

  • I2C, SPI, RS-232 / 422 / 485 / UART
  • CAN/CAN FD, LIN, FlexRay
  • I2S/LJ/RJ/TDM
  • MIL-STD-1553 , USB

Power Measurements and Analysis

The quest for ever-higher energy efficiency is placing new demands on designers and test instruments alike. Standby power constraints, higher switching speeds and signal ranges, lower-leakage semiconductor devices are pushing test conditions to new extremes. The MDO3000 offers power test solutions to address these ever evolving requirements.

Highlights

  • Power loss measurement at switching device
  • Measurement and analysis of ripple and noise
  • Characterization of power semiconductor devices
  • Debugging active power factor correction circuits

Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC)

When performing design EMI/EMC testing, there is always risk it will fail; leading to schedule and budget issues. The MDO3000 with built-in spectrum analyzer enables you to perform pre-compliance testing in your lab - greatly improving the probability of a successful first pass of full EMI compliance testing.

Automotive Buses – CAN/CAN FD Trigger, Decode & Analysis

The technical requirements of today’s automobiles require more sophisticated and sensitive electronic components and systems than ever. With six instruments in one, the Tektronix MDO3000 was developed to help meet the challenges for testing and verification of these advanced technologies. Now a single instrument can be used for:

  • Debugging & verifying CAN FD, CAN, LIN and FlexRay
  • High power testing for hybrid/electric vehicles
  • Verifying in-car wireless systems
  • New component eval (MEMS sensors, LED drivers, LEDs
Current Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet A621 Current Probe: 50 kHz, 10 mA to 2000 A, AC, BNC Configure & Quote
View Datasheet A622 Current Probe: 100 kHz, 10 mA to 100 A, AC/DC, BNC Configure & Quote
TCP0020 Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP0030A Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP0150 Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI Configure & Quote
View Datasheet TCP303 PROBE; AC/DC CURRENT; DC-15MHZ,150A DC, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
View Datasheet TCP305A Probe, AC/DC Current; 50Amp DC, DC-50MHZ, Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP312A Probe, AC/DC Current; 30 Amp DC, DC-100MHZ, Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP404XL PROBE; AC/DC CURRENT, DC-2MHZ, 500A DC, 750A DC DERATED WITH DUTY CYCLE,CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
High Voltage Differential Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet TDP0500 Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
View Datasheet TDP1000 Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
View Datasheet THDP0100 Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
View Datasheet THDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
View Datasheet TMDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200 Configure & Quote
High Voltage Probe: Single-Ended
Datasheet Link Probe Description Configure and Quote
View Datasheet TPP0850 High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI Configure & Quote
Logic Probe
Datasheet Link Probe Description Configure and Quote
P6316 MSO PROBE; 16 CHANNEL GENERAL PURPOSE PROBE Configure & Quote
Low Voltage Differential Oscilloscope Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet ADA400A AMPLIFIER, DIFF; MICROVOLT, DIFFERENTIAL, - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD Configure & Quote
View Datasheet TDP1500 Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI Configure & Quote
View Datasheet TDP3500 Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI Configure & Quote
Low Voltage Probes: Single-Ended
Datasheet Link Probe Description Configure and Quote
View Datasheet TAP1500 Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
View Datasheet TAP2500 Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
View Datasheet TAP3500 Active Probe: 3.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
Passive Probe
Datasheet Link Probe Description Configure and Quote
View Datasheet TPP0100 Passive Probe: 100 MHz, 10X, BNC Configure & Quote
View Datasheet TPP0200 Passive Probe: 200 MHz, 10X, BNC Configure & Quote
View Datasheet TPP0250 Passive Probe: 250 MHz, 10X, TekVPI Configure & Quote
View Datasheet TPP0500B Passive Probe: 500 MHz, 10X, TekVPI Configure & Quote
View Datasheet TPP0502 Passive Probe: 500 MHz, 2X, TekVPI Configure & Quote
View Datasheet TPP1000 Passive Probe: 1 GHz, 10X, TekVPI Configure & Quote
