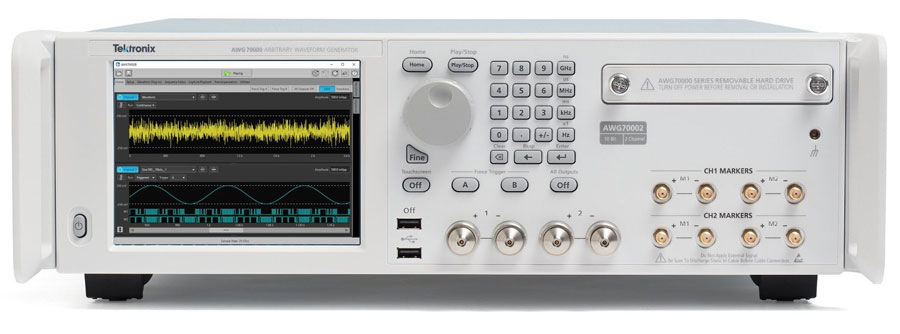

AWG70000B Arbitrary Waveform Generator

The AWG70000B Series Arbitrary Waveform Generator represents the cutting edge in sample rate, signal fidelity and waveform memory, making it ideal for design, testing and operations of complex components, systems and experiments. With up to sample rate of 50 GS/s and 10-bit vertical resolution, it delivers the industry's best signal stimulus solution for easy generation of ideal, distorted and “real-life” signals.
See all waveform generators »

What’s New

  • Optional memory expansion up to 32 Gigasamples
  • Streaming Waveform ID
  • Windows 10 support
Sample Rate

50 GS/s

Memory

2 Gsamples/channel
32 Gsamples (Optional)

Resolution

10 bits

Generate equalized wideband signals right at the DUT interface

Waveform Pre-Compensation

When generating wideband signals, minor impedance discontinuities in the interconnect cables can affect the amplitude and phase flatness. Additionally, as signal frequencies increase, they can be subject to the analog bandwidth and roll-off characteristics of the AWG. To help you improve the fidelity of your generated waveforms, Tektronix AWGs correct these signal impairments by pre-distorting, or pre-compensating the waveform data to counteract the degradation. Achieve excellent frequency flatness right at the interface of your device under test with the pre-compensation plug-in for Tektronix AWGs.

Learn about Pre-compensation

The cleanest, truest to life signals.

Thumbnail

10 bits of resolution with a full range of sample rates (up to 50 Gs/s) allows you to simulate complex environments, recreate objects of interest and reliably generate precise test signals—all with low EVM and noise. Directly generate signals with up to 18 GHz of bandwidth or generate baseband I/Q streams.

Highlights

  • 10 bits of resolution
  • SFDR -80 dBc

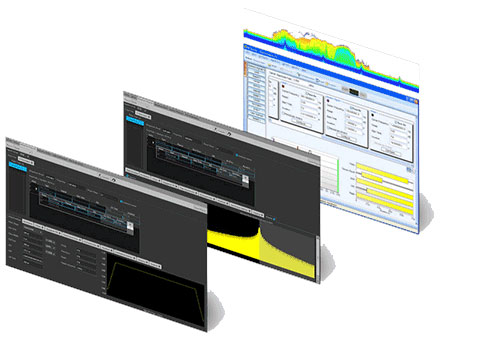

Tools that let you be as arbitrary as you want to be.

Thumbnail

AWG Software Library supports fast development of waveforms, inserts jitter, pre-distorts waveforms for optimal EVMs, and even simulates complex real world environments. All waveform plug-ins integrate seamlessly into the AWG GUI and can be run on your PC when you can't make it to lab. Generate all the waveforms you need—there’s no charge to compile.

Highlights

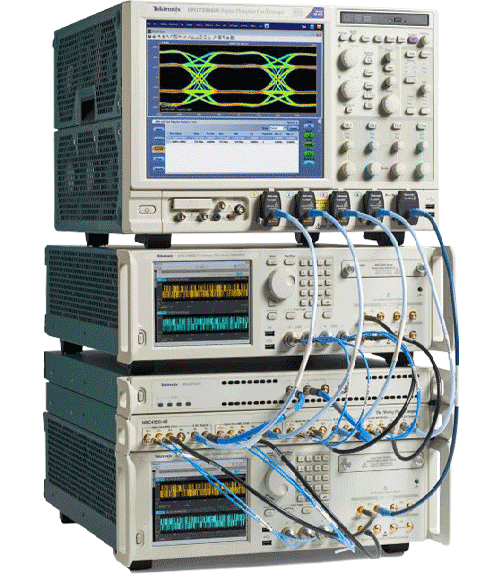

Test more. Test faster. Test now.

Thumbnail

Ready to use just minutes out of the box, the AWG70000B accelerates the pace of test. The AWG Sync Hub enables plug-and-play instrument-to-instrument synchronization, allowing experiments or test set-ups to scale with ease. It’s easy to set up too, so you’ll spend less time on synchronization and more time doing.

Highlights

  • Less than 10ps of skew means tight instrument-instrument synchronization
  • AWG Sync Hub has all of the cables and hardware you need to sync up to 4 AWGs.
  • SourceXpress software enables flexible remote instrument control, with support for multiple synchronized instruments

Reliable, repeatable & rugged. Your off the shelf, performance solution.

Thumbnail

Rack mountable and tested to work in the field, the AWG70000B Series is a perfect solution for remote field deployments, COTS updates for legacy equipment or updating your test and measurement rack. With excellent performance and calibration service, it’s a rugged and reliable key to your mission-critical set up.

Highlights

  • Available with 3- or 5-year service plan
  • Non-operating temp from -40C to 70C
  • Tested to military vibration standards
  • Shock- and drop-tested for field use
Model Analog Channels Vertical Resolution Analog Bandwidth Output Frequency Max Sample Rate Record Length List Price Configure And Quote
AWG70002B

2

8, 9, or 10 bits

Up to 13.5 GHz

10 GHz

25 GS/s

2 GS, 16 GS (Optional)

- Configure & Quote
AWG70001B

1

8, 9, or 10 bits

Up to 15 GHz

20 GHz

50 GS/s

2 GS, 32 GS (Optional)

- Configure & Quote
Model Analog Channels Vertical Resolution Analog Bandwidth Output Frequency Max Sample Rate Record Length List Price Configure And Quote
AWG70002B

2

8, 9, or 10 bits

Up to 13.5 GHz

10 GHz

25 GS/s

2 GS, 16 GS (Optional)

- Configure & Quote
AWG70001B

1

8, 9, or 10 bits

Up to 15 GHz

20 GHz

50 GS/s

2 GS, 32 GS (Optional)

- Configure & Quote



Generate complex signals with AWG plug-ins – FREE

These plug-ins can be installed on the AWG5200 Series, AWG70000 Series and SourceXpress PC platform.



AWG Plug-ins

Pattern Generator (for LVDS and other differential or single-ended digital signal pattern generation)

  • Create, edit, and assign digital patterns for up to 8 Analog channels and 32 Digital Marker channels per instrument at 5GS/s
  • Import .txt and .cvs files
1 Download software

Pulse Generator (Applications: LVDS, Timing-to-digital converters, LiDAR)

  • Create pulses and bursts of pulses for non-RF applications
1 Download software

LVDS Video (for LVDS FPD-Link designs)

  • Import bitmap image files and generate static-frame LVDS video waveforms
  • Configure JEIDA/VESA encoding formats and resolution, frame rate and color bits
  • Map data lanes to analog and markers, to create waveforms based on the selected color bits
  • Recommended for use with the AWG5200 due to LVDS applications requiring more than 2 channels
1 Download software
2 Download datasheet



Add advanced measurements with AWG plug-ins – FREE for 30 days

Try these advanced measurements with a trial license. (All trials are floating licenses.)

These plug-ins can be installed on the AWG5200 Series, AWG70000 Series, and SourceXpress PC platform.

Node locked licenses let you move to a new PC three times. Floating licenses allow selected users to manage individual licenses.



AWG Plug-ins

Environment

  • A waveform creation plugin enabling the creation of specific RF environments for applications like simulating/emulating any real world wireless scenarios/environments for EW monitoring, radar receivers with interference signals and Phased Array Antennae and MIMO.
1 Download software
2 Enable trial license
3 Request a quote on ENVFL-SS01 (floating license)
Request a quote on ENVFL-SS01 (node-locked license)
4 Download the datasheet

Generic Precompensation

  • Creates correction coefficients that can be applied on waveforms to get flat frequency and linear phase response.
1 Download software
2 Enable trial license
3 Request a quote on PRECOMFL-SS01 (floating license)
Request a quote on PRECOMNL-SS01 (node-locked license)
4 Download the datasheet

High Speed Serial

  • Enables the creation of the exact waveforms required for thorough and repeatable design validation, margin/characterization, and conformance testing.
1 Download software
2 Enable trial license
3 Request a quote on HSSFL-SS01 (floating license)
Request a quote on HSSNL-SS01 (node-locked license)
4 Download the datasheet

Multi-Tone and Chirp

  • Notch out frequencies by setting the start and end frequency of choice.
  • When generating chirps, set high-to-low or low-to-high frequency sweeps and define chirp characteristics by sweep time or sweep rate.
1 Download software
2 Enable trial license
3 Request a quote on MTONEFL-SS01 (floating license)
Request a quote on MTONENL-SS01 (node-locked license)
4 Download the datasheet

OFDM Plug-In

  • Configure and create complete multiple, definable OFDM frames with preamble, header and payload
  • Use presets for standard compliant frames for various wireless standards like Wi-Fi, WiMAX or define your own using subcarrier modulation formats including BPSK, QPSK, QAM (16, 32, 64, 256, 512, 1024), and 8-PSK
  • Add impairments and define frequency hopping and gated noise to simulate practical environments for receiver testing
1 Download software
2 Enable trial license
3 Request a quote on OFDMFL-SS01 (floating license)
Request a quote on OFDMNL-SS01 (node-locked license)
4 Download the datasheet

Optical Plug-In

  • Easily define and generate complex dual polarization modulation schemes with separately configured baseband data.
  • Define optical waveforms using a variety of predefined modulation schemes such as, BPSK, QPSK, OQPSK, OOK, NRZ, up to 8 PAM, and up to QAM1024 – including QAM8.
1 Download software
2 Enable trial license
3 Request a quote on OPTICALFL-SS01 (floating license)
Request a quote on OPTICALNL-SS01 (node-locked license)
4 Download the datasheet

Radar

  • Create multiple customized pulses and pulse groups to simulate multiple target returns and antenna scanning
  • Choose from a wide variety of intra-pulse modulations (LFM, Barker, Piecewise LFM, nonlinear LFM, and more)
  • Simulate antenna scanning with different beam profiles
  • Define inter-pulse-hopping patterns in both frequency and phase
1 Download software
2 Enable trial license
3 Request a quote on RADARFL-SS01 (floating license)
Request a quote on RADARNL-SS01 (node-locked license)
4 Download the datasheet

RF Generic

  • Delivers advanced capabilities to synthesize digitally modulated baseband, IF, and RF/microwave signals supporting a wide range of modulation schemes.
1 Download software
2 Enable trial license
3 Request a quote on RFGENFL-SS01 (floating license)
Request a quote on RFGENNL-SS01 (node-locked license)
4 Download the datasheet

S-Parameter

  • Enables precise channel or device emulation by applying extracted S-parameters directly onto any waveform.
  • S-parameter files can be generated using a vector network analyzer and are convolved with the base pattern to recreate channel characteristics. By applying inverse filtering, the effects of the channel can be effectively de-embedded from the system.
  • The S-parameter plug-in also enables the ISI capability within the High Speed Serial plug-in.
1 This capability is built into several plugins and only requires a license to use it
2 Enable trial license
3 Request a quote on SPARAFL-SS01 (floating license)
Request a quote on SPARANL-SS01 (node-locked license)
4 Download the datasheet

Spread Spectrum Clock (SSC)

  • Allows for SSC modulation to be added with precisely controlled profile, spread, deviation, and df/dt.
  • It supports triangular, sinusoidal, and user-defined frequency spreading schemes that can be added to the base pattern.
1 This capability is built into the High Speed Serial and Optical plugins and only requires a license to use it in either plug-in.
2 Enable trial license
3 Request a quote on SSCFL-SS01 (floating license)
Request a quote on SSCNL-SS01 (node-locked license)
4 Download the datasheet
Software Package / Software Option Description
C-PHY Signal Generation Software for Receiver Testing - V1.1.0 CPHYXpress is a powerful and easy to use software package to synthesise waveform for C-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of Jitter impairments. It also controls the creation of Low Power signals.
D-PHY Signal Generation Software for Receiver Testing - V1.1.0 DPHYXpress is a powerful and easy to use software package to synthesize waveforms for D-PHY, which is one of High Speed Serial Interface under MIPI® Alliance. This tool supports the creation of High Speed signal with various types of jitter impairments.It also controls the creation of Low Power signals.
SourceXpress Software - V7.1 SourceXpress is a software application that allows users to remotely control multiple AWG70000 and AWG5200 series instruments. SourceXpress is also the PC platform for software plug-ins.
AWG70000A Series Firmware - V7.1 The AWG Software is a collection of software components for AWG70000A series arbitrary waveform.
Product Description
AWG70000 Option AC Internal amplifier/attenuator: -70dBm to +18dBm from 10MHz to 18GHz
Amplifiers Tektronix provides a complete line of amplifiers including a 12.5 Gb/s lithium niobate driver amplifier and a series of broadband linear amplifiers with bandwidths up to 45 GHz.
Baluns Tektronix baluns are an effective means for using single-ended test equipment (AWGs) for taking differential measurements.
Bias Tees Tektronix bias tees are used to supply an active device like an amplifier, laser diode, photodiode, or optical modulator with a bias current or bias voltage while allowing high speed, ultra-broadband signals to pass through with minimum signal
Power Splitters Tektronix Power Dividers are resistive tees that have excellent performance and frequency response from DC to as high as 50 GHz.
MDC4500-4B The MDC4500-4B is a certified one-box solution for simplifying your MIPI C-PHY/D-PHY test setup. Designed to work with the Tektronix AWG70002A, the MDC4500-4B is designed to condition the output to meet the conditions needed for C-PHY/D-PHY compliance test. Reduce setup time, troubleshooting overhead, and test uncertainty with an all-in-one integrated solution.

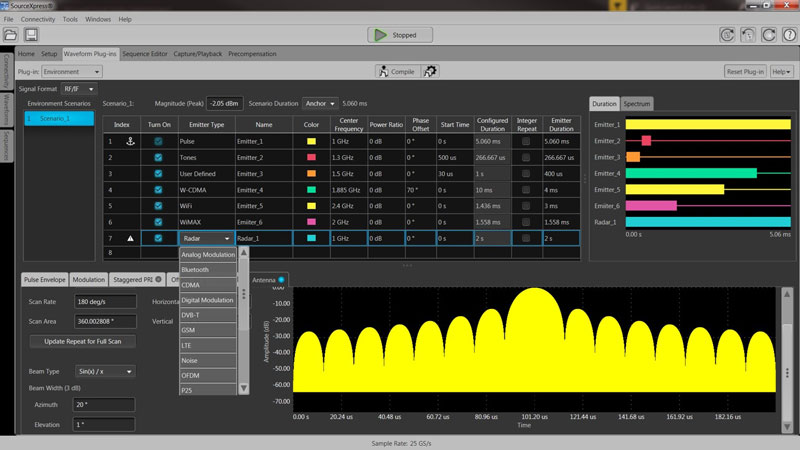

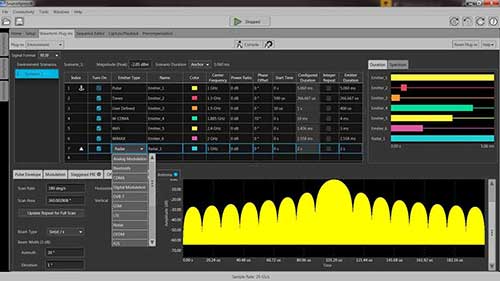

Building a multiple emitter RF signal environment made easy

Thumbnail

In recent years, proposals have been made for communication systems to operate in radar bands, closing the proximity of Radar and RF signal environments. Tektronix has put together a specific waveform creation plugin for current Arbitrary Waveform Generators that enables engineers to create specific RF environments for many specific applications.

Supported applications include simulating/emulating any real world wireless scenarios/environments for EW monitoring, radar receivers with interference signals and Phased Array Antennae and MIMO.

Features of the new environment plugin include:

  • The ability to create multiple scenarios and assign to different AWG channels in one compile. Users can create up to 50 Scenarios.
  • Scenarios are made up of individual RF Emitters signals and users can define up to 100 Emitters per Scenario

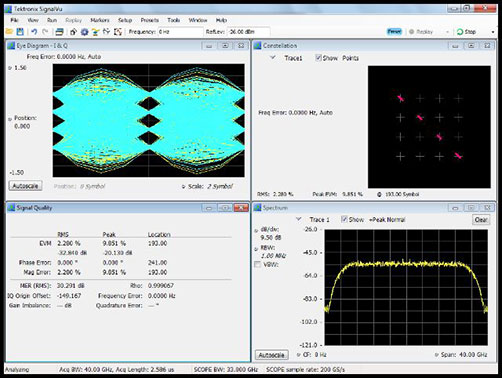

Engineering through complexity

Thumbnail

When engineering the world's most complex systems, the ability to create ideal, distorted and "real life" signals is essential. Generating advanced radar signals demands exceptional performance from an AWG in terms of sample rate, dynamic range, and memory. Advanced communication systems, such as coherent optical and PAM4, require reliable, easy to set up and high performing tool sets for optical testing, waveform generation and calibration. Electronic warfare systems require complex, stress testing with advanced capabilities to synthesize digitally modulated baseband, IF and RF/microwave signals through a wide range of modulation schemes in a timely manner is essential. Advanced electronic and physics applications like quantum computing need to create clean, stable waveforms to reduce the time to iterate through designs and experiment costs to make breakthroughs happen.

Accessory AWGRACK
Datasheet Description
View Datasheet RACK KIT, AWG 70000 SERIES
Accessory AWGSYNC01
Datasheet Description
Hub for synchronizing multiple AWGs
Accessory TEK-USB-488
Datasheet Description
USB TO IEEE488 (GPIB) COMMUNICATIONS ADAPTOR FOR USBTMC-USB488 COMPLIANT TEKTRONIX INSTRUMENTS
Datasheet Accessory Description
AWGRACK RACK KIT, AWG 70000 SERIES
View Datasheet AWGSYNC01 Hub for synchronizing multiple AWGs
View Datasheet TEK-USB-488 USB TO IEEE488 (GPIB) COMMUNICATIONS ADAPTOR FOR USBTMC-USB488 COMPLIANT TEKTRONIX INSTRUMENTS
